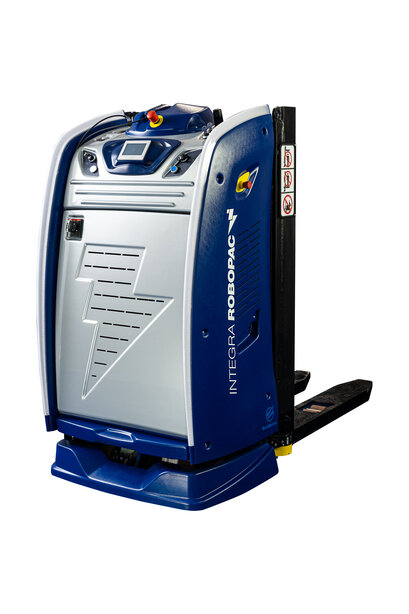

integra NN Automated guided vehicle with natural navigation for pallet transportation

Integra is an automatic guided vehicle with covering forks suitable for moving pallets within the factory. In low position, the forks cover the rear wheels just like an electrical pallet truck. Extremely compact and agile machine, Integra can move in reduced space, whilst guaranteeing maximum safety. In relation to its reduced dimensions, the vehicle can move products for up to 1.500 kg loads.

produced by

product benefits

PRODUCTIVITY

Thanks to lithium battery that allow optimal charging cycles and the maximum durability

SUSTAINABILITY

Thanks to AC motors and high efficiency lithium batteries

FLEXIBILITY

No physical intervention for subsequent changes but only via software

PRECISION

AGV positioning with a maximum precision of ± 10 mm

SAFETY

Totally safe machine thanksto the optimized management of the supervision software

HIGH PERFORMANCE IN A COMPACT SOLUTION

Ideal for working in confined spaces, INTEGRA allows you to manage loadsup to 1500 kg and up to 675 mm in height

Integra NN

Integra

Technical features

maximum load weight	kg	1500
pallet type		EUR 800x1200
maximum vehicle speed	mm/s	1500
forks lifting	mm	675 mm (from the ground)
maximum surmountable slope		3° / 5%
maximum surmountable step	mm	5
size / typology / Q.ty idler wheels (n°4)		D=85 mm W=80 mm polyurethane
drive wheel size / type / Qty (n°1)		D=230 mm W=70 mm polyurethane
size / type / Qty. of stabilizer wheel (n°1)		D=150 mm W=50 mm polyurethane with shock absorber
positioning accuracy	mm	± 10
battery voltage	V	24
battery capacity	Ah	150
working ambient temperature	°C	5÷40
