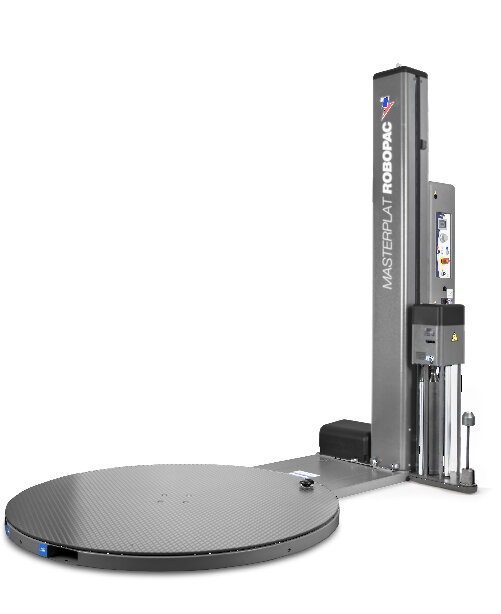

Masterplat Plus Inox Turntable stretch wrapping machines
The Inox version of the Masterplat range is designed to ensure maximum corrosion resistance and hygiene in applications where cleaning and sanitization are essential. It is the ideal solution for companies operating in the food, chemical, and pharmaceutical sectors, where the reliability of stainless-steel surfaces is a decisive factor.
read more
product benefits
overview
Discover more on our app Robopac HMI
Try the Rotoplat & Masteplat Plus user friendly control panel on your devices.
option & data sheet
R-Connect
Innovation and connection for customer service: the tranquillity of maximum productivity as a result of constant monitoring of proper machine operation.
Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all management costs.
In fact, the system minimises machine downtime and manages maintenance operations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.
ramps
Ramps for easy loading with hand pallet truck
Net film carriage
This carriage is used in all those sectors where product transpiration is required (fruit, vegetables, etc.)
Top presser
Top presser for the stabilization of light products.
Available in two versions: mechanical and pneumatic.
Weighing kit
Weighing frame kit for turntable machines.
|
Max load weight |
kg | 1200 std. 2000 opt. (Ø1500) / 2000 std. 2500 opt. (Ø1650-Ø1800) |
| Sensibility |
±0,2 |
|
|
Integrated printer |
opt. | |
| Compatibility | Ecoplat Plus (Ø1500) / Ecoplat Plus, Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1650) / Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1800) | |
|
Power supply voltage |
V |
110-240 V (1Ph) |
|
Power supply frequency |
Hz | 50/60 |
Technical features
| Turntable diameter | mm |
1650 |
| Max load weight | kg |
2000 |
| Turntable speed | rpm | 5÷12 |
| Carriage up-down speed | m/min | 1,4÷4 |
| Maximum product dimensions (LxW) | mm |
1000x1200 |
| Maximum product height | mm | 2200 std. 2400 opt. |
| Film carriage type | FRD, PGS | |
| Film stretch | manual (FRD), adjustable from panel (PGS) | |
| Film pre-stretch |
n.a. (FRD), fixed 250% std. (PGS) |
|
| Forklifting | front and rear | |
| Power supply voltage | V | 230 V 1Ph |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 1,5 (FRD) / 1,9 (PGS) |
| Max reel dimensions | mm |
500x300 |
| Max reel weight | kg | 20 |
| Film thickness | μm | 17÷35 |
