Case Sealer & Case Erectors

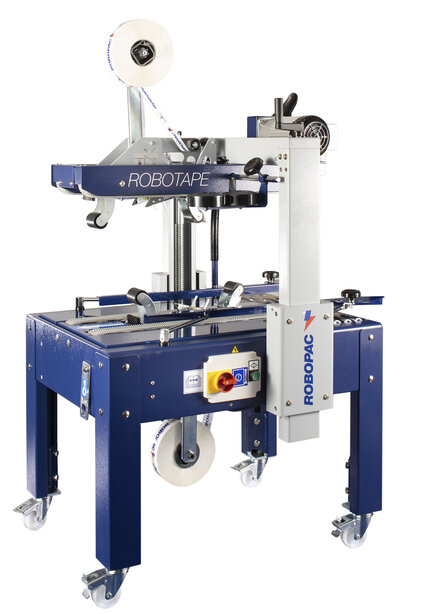

Robotape TBDE HD Semi-automatic taping machine with fixed format

Name: Robotape TBDE HD Semi-automatic taping machine with fixed format
Brand: robopac

Taping machines with top and bottom drive for sealing fixed format box.

produced by

SUITABLE FOR HIGH AND NARROW BOXES

FIXED FORMAT AND TOP-BOTTOM DRIVE BELTS

SUITABLE FOR PAPER TAPE

product benefits

THANKS TO THE COMPONENTS DESIGNED AND BUILT FOLLOWING THE STRICTEST SAFETY AND QUALITY PROTOCOLS

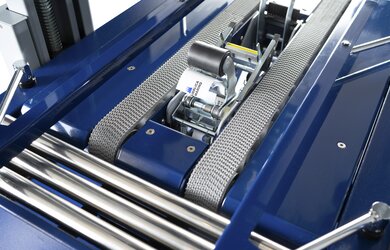

The motorized top and bottom gripping belt conveyors ensure a constant mesh on the products.

Discover more on our app Robopac MyCase

Enter your box dimensions and configure your taping machine.

HD taping head idle rollers conveyor idler rollers conveyors and extensible conveyors Motorized conveyor set of 4 casters with brake

TAPING HEAD SUITABLE TO ALL ROBOTAPE TAPING MACHINES RANGE

Product handling conveyor with galvanized idle rollers

Wide range of accessories for taping lines: idler rollers conveyors and extensible conveyors.

Motorized belt product handling conveyor, specific for those products that require a uniform support surface

Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.

Width conveyor belt	mm	50 std
Infeed speed	m/min	22
Tape width	mm	50 (W=135 mm) 50 - 75 (W=160 mm)
N° 2 taping heads (upper and lower)		opt
Minimum boxes dimensions (LxWxH)	mm	150x135x110 (W=135 mm) 150x160x110 (W=160 mm)
Maximum boxes dimensions (LxWxH)	mm	∞x500x500
Minimum box weight	kg	1
Max box weight	kg	50
Power supply voltage	V	230 V 1Ph + T
Power supply frequency	Hz	50
Installed power	kW	0,4
Air consumption	Nl/min	n.a.
Working pressure	bar	n.a.
