Case Sealer & Case Erectors

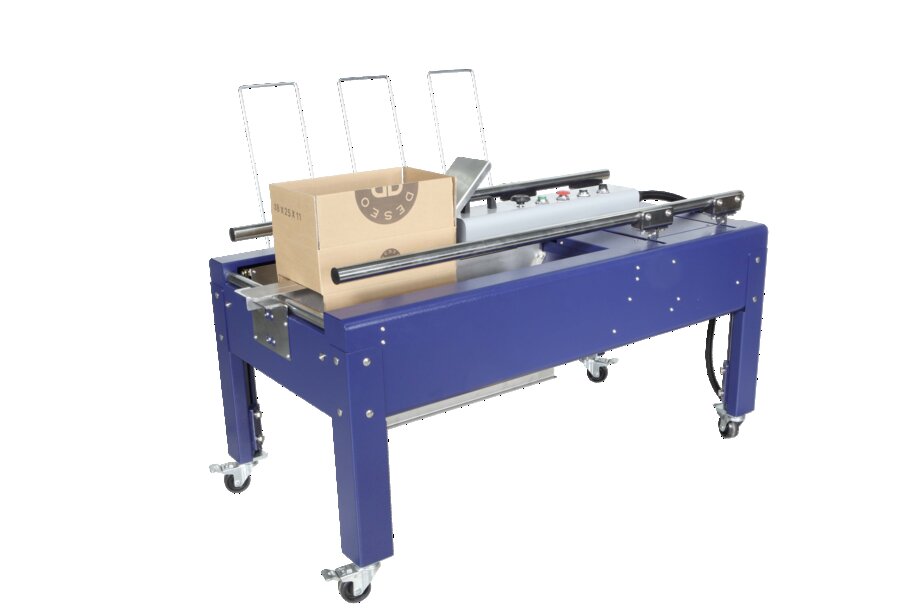

Starbox Semi-automatic carton erecting machine
Semi-automatic carton erecting machine
product benefits
overview
Discover more on our app Robopac MyCase
Enter your box dimensions and configure your taping machine.
Starbox
option & data sheet

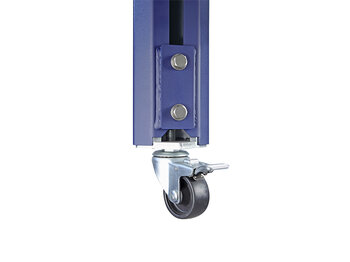

set of 4 casters with brake
Wheels that facilitate the movement of the machine, equipped with a brake for safe locking.
Technical features
| Minimum boxes dimensions (LxWxH) | mm | 150x230x110 (Starbox 50) / 150x300x110 (Starbox 65) |
| Maximum boxes dimensions (LxWxH) | mm | 650 x 500 x see downstream taping machine (Starbox 50) / 800x650 x see downstream taping machine (Starbox 65) |
| Max box weight | kg | 50 |
| Power supply voltage | V | n.a. |
| Power supply frequency | Hz | n.a. |
| Installed power | kW | n.a. |
| Air consumption |
Nl/min |
8,5 (Starbox 50) / 9 (Starbox 65) |
| Working pressure | bar | 6±1 |
