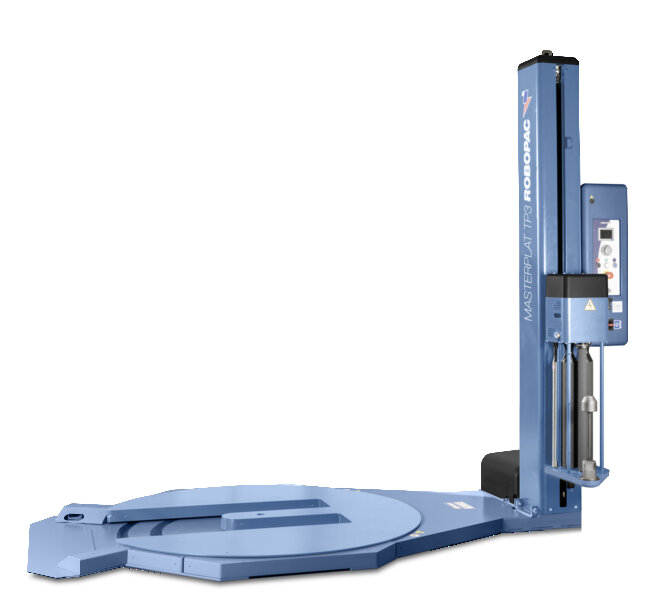

Masterplat Plus Freezer TP3 Turntable wrapping machine with shaped plate for pallet jack loading
The Masterplats are the latest range of Turntable Pallet Wrappers from Robopac. Designed using the best features from the Ecoplats with the performance of the Rotoplats. There are 2 models in the Masterplat range of Pallet Wrappers both available in Transpallet version.
read more
product benefits
overview
Discover more on our app Robopac HMI
Try the Rotoplat & Masteplat Plus user friendly control panel on your devices.
option & data sheet
R-Connect
Innovation and connection for customer service: the tranquillity of maximum productivity as a result of constant monitoring of proper machine operation.
Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all management costs.
In fact, the system minimises machine downtime and manages maintenance operations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.
Net film carriage
This carriage is used in all those sectors where product transpiration is required (fruit, vegetables, etc.)
Top presser
Top presser for the stabilization of light products.
Available in two versions: mechanical and pneumatic.
Technical features
| Turntable diameter | mm |
1650 |
| Max load weight | kg |
1500 |
| Turntable speed | rpm | 5÷12 |
| Carriage up-down speed | m/min | 1,4÷4 |
| Maximum product dimensions (LxW) | mm |
1000x1200 |
| Maximum product height | mm | 2200 std. 2400/2800 opt. |
| Film carriage type | FRD, PGS | |
| Film stretch | manual (FRD), adjustable from panel (PGS) | |
| Film pre-stretch |
n.a. (FRD), fixed 250% std. (PGS) |
|
| Forklifting | rear | |
| Power supply voltage | V | 230 V 1Ph |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 1,5 (FRD) / 1,9 (PGS) |
| Max reel dimensions | mm |
500x300 |
| Max reel weight | kg | 20 |
| Film thickness | μm | 17÷35 |
